LRA 1200 – powerful soldering fume extractor

Grey cuboid unit for soldering fume extraction

Product details

Application fields

  • Manual soldering

  • Robot soldering

  • Automated soldering systems

Features

  • Mobile extraction system with castors

  • Exchangeable filter system

  • Control elements on the front panel

  • Powder coated, rugged steel housing

  • Loaded particle filter indicator: optical signalling

  • Volume flow control: stepless adjustment of suction capacity

  • Installation of extraction arms

Options

  • Interface SUB D9, operation hours counter, digital device control

  • Expanded metal prefilter, particulate filter, adsorption filter

Technical specifications

Device versionLRA 1200 MD.18
Max. air flow in m³/h1500
Max. vacuum in Pa3250
Nominal capacity in m³/h@Pa1000 @ 1700
Dimensions in mm (WxDxH)790x820x1040
Weight in kg145
Noise level in dB55
Connection variants – diameter in mm1 X Ø 150 collar / 1 X Ø 160 collar

System benefits

  1. Modular construction

    Modularity is the basis for the effective use of ULT ventilation solutions. This allows You to react flexibly to changing pollutant or processing scenarios and always exploit the full potential of the systems.

  2. High flexibility

    Our extraction and filtration systems can be used flexibly. This lets you choose, for instance, between mobile and/or stationary solutions, integrated systems, or specialized ventilation solutions. If necessary, the optimal application can be configured by ULT experts on-site.

  3. Ideal filtration technology

    The utilization of the most sensible filtration technology ensures a long filter service life and, consequently, reduces maintenance and spare parts costs. ULT always offers You the ideal solution for your specific pollutant technology in order to achieve the best possible filtration results.

  4. Individual system design

    If necessary, our extraction systems can be structurally adapted to your individual pollutant and workplace situation. This applies to the selection of the ideal filtration technology, questions of fire and explosion protection, the selection of system materials and special solutions for capturing air pollutants.

  5. Long filter time

    The long performance life of the filter elements in our systems reduces maintenance and material costs in the medium and long term. In addition, the downtimes for necessary filter module changes or system cleaning are significantly reduced.

  6. Simple operation

    Our extraction and filtration systems have been designed in such a way that they can be put into operation trouble-free and are easy to operate. They are easy to operate, handle and maintain.

Downloads
  1. Technical documentation LRA 1200
  2. Accessories ULT 1200
Images
Circular opening for connecting detection elements on the system's hinged cover
Connection for extraction arm or hose on the top of the device
Silhouette of a person next to the device
Human-system size ratio

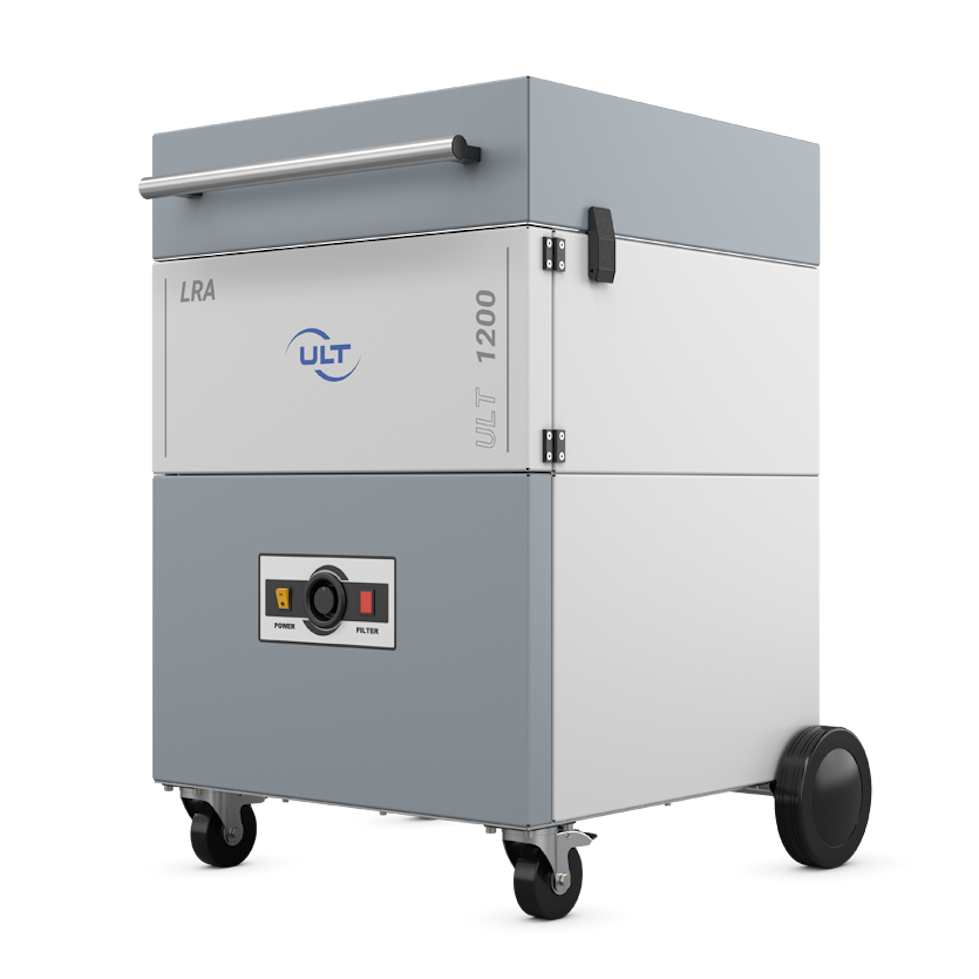

Side view of the device from the left
LRA 1200 for flexible soldering fume extraction

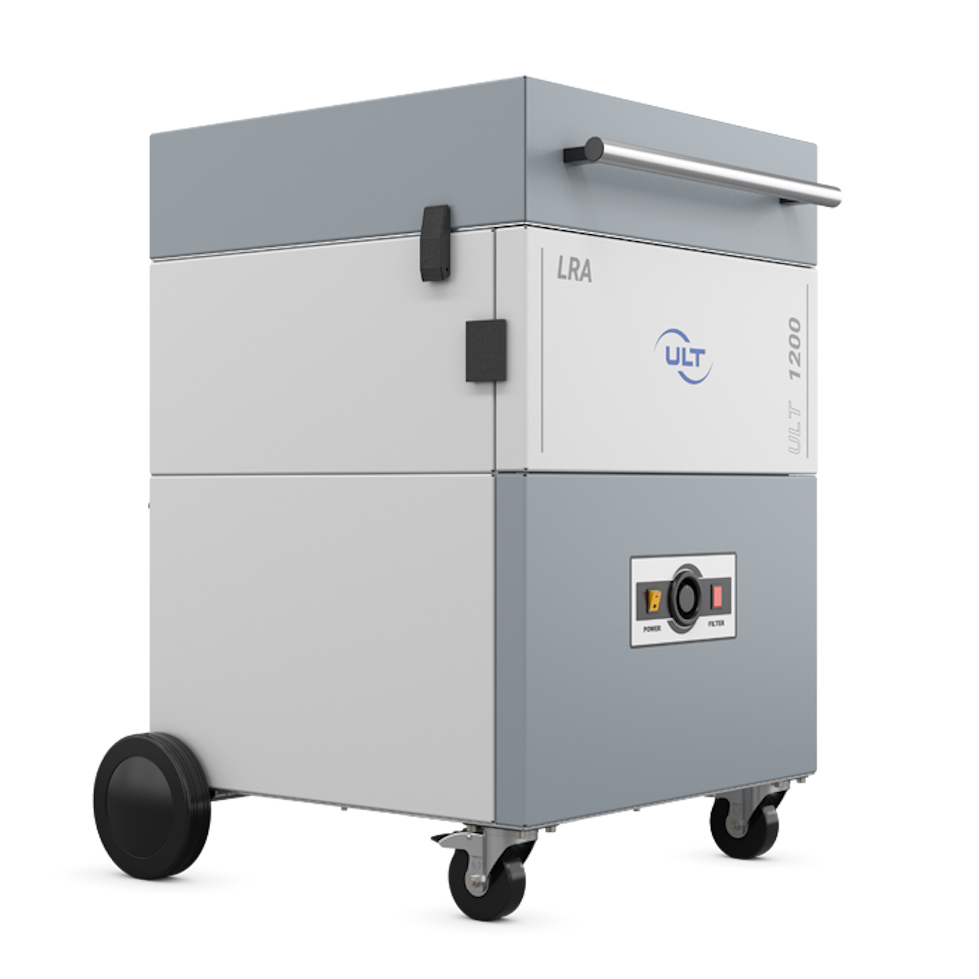

Lateral device view from the right. Device castors and controls visible
Device castors allow the system's flexible utilization at changing workplaces

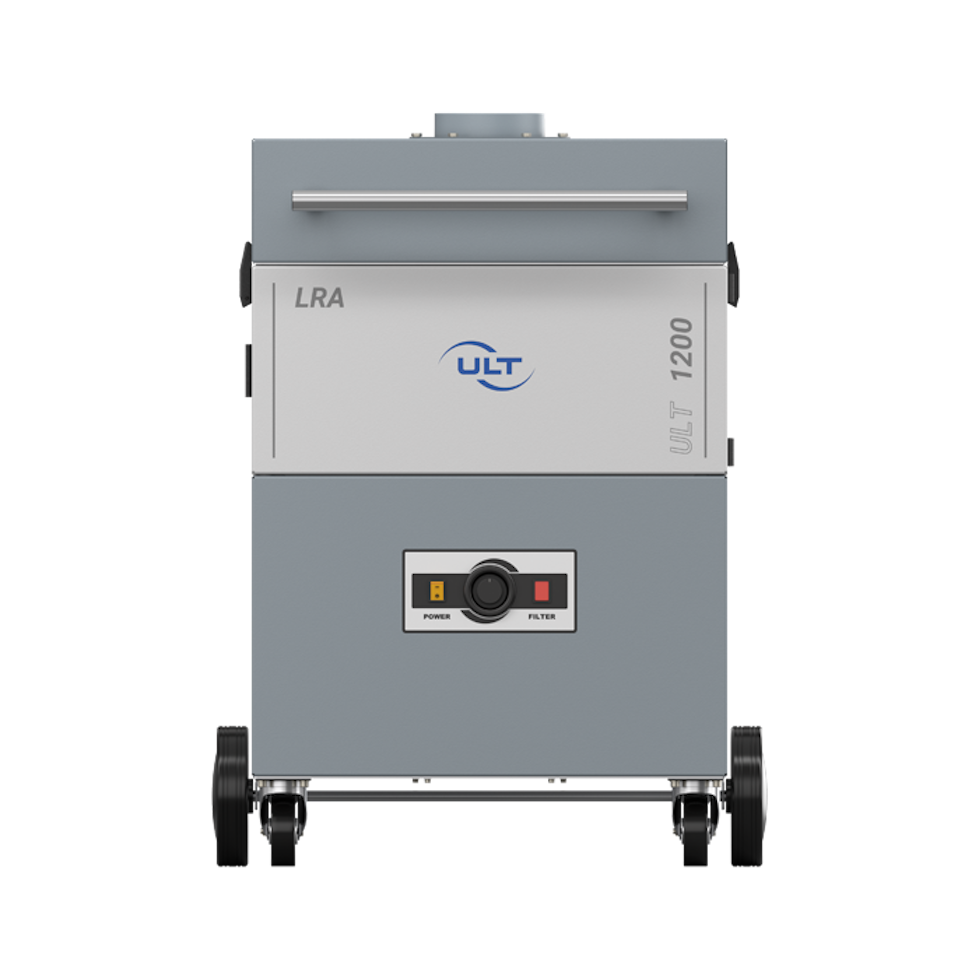

Front view of the gray extraction system with potentiometer and light elements
Control elements and visual status indicators on the front panel of the system

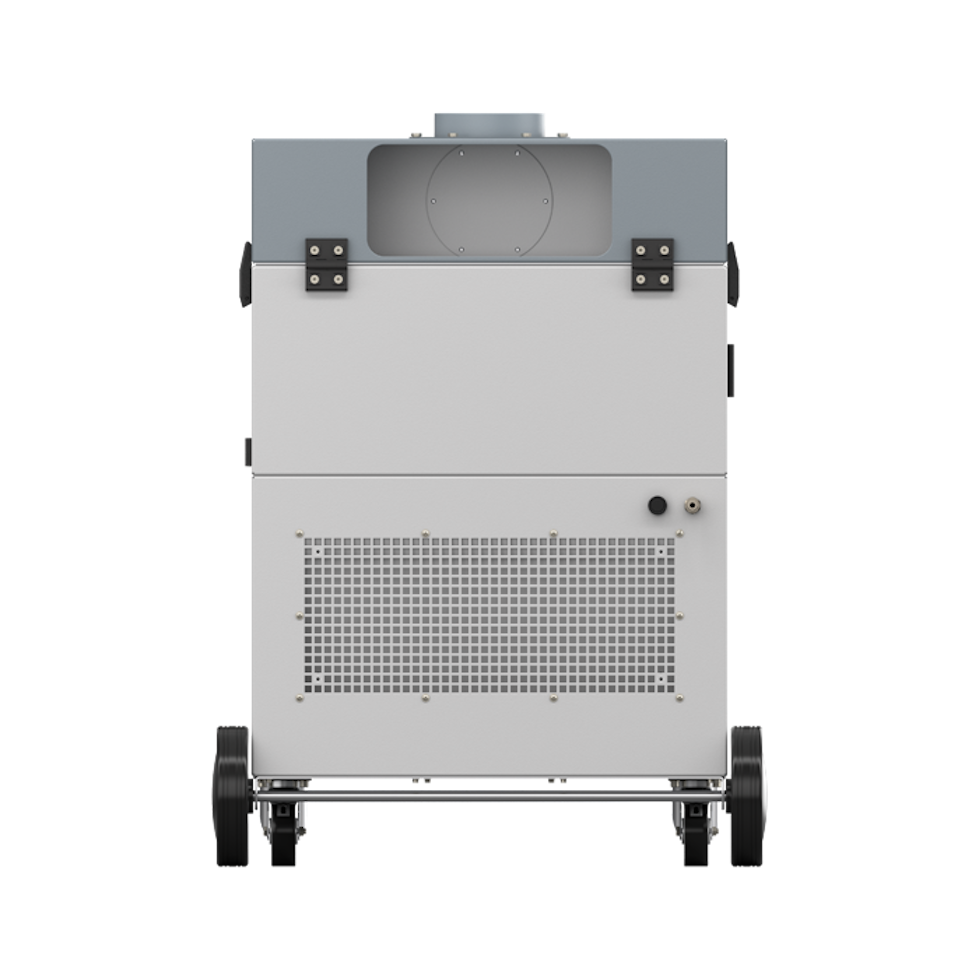

Rear view of the system with exhaust opening in the lower area of the device
Outlet grille for cleaned air on the back of the device

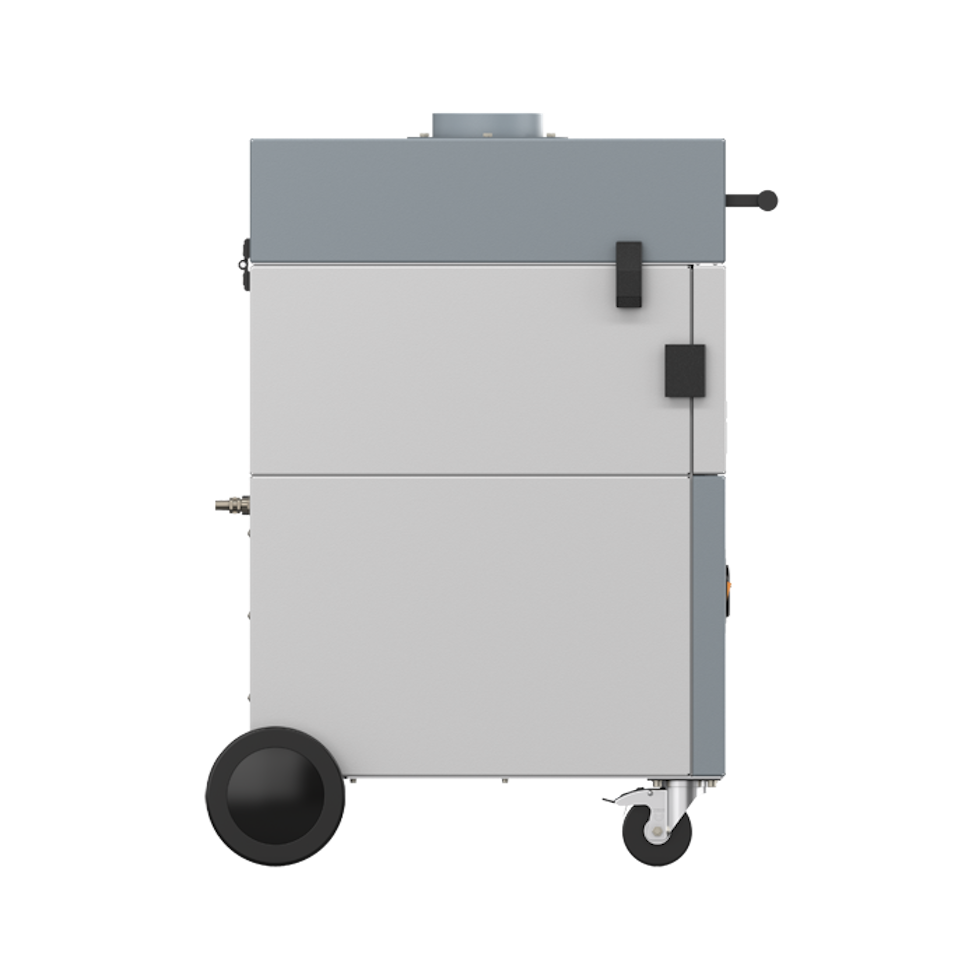

Side view of the extraction system
Quick-lock fasteners simplify fast filter exchanges
Circular opening for connecting detection elements on the system's hinged cover
Connection for extraction arm or hose on the top of the device
Silhouette of a person next to the device
Human-system size ratio
Side view of the device from the left
LRA 1200 for flexible soldering fume extraction
Lateral device view from the right. Device castors and controls visible
Device castors allow the system's flexible utilization at changing workplaces
