JUMBO Filtertrolley 2.0 ACD – mobile filtration unit for odors, gases, vapors

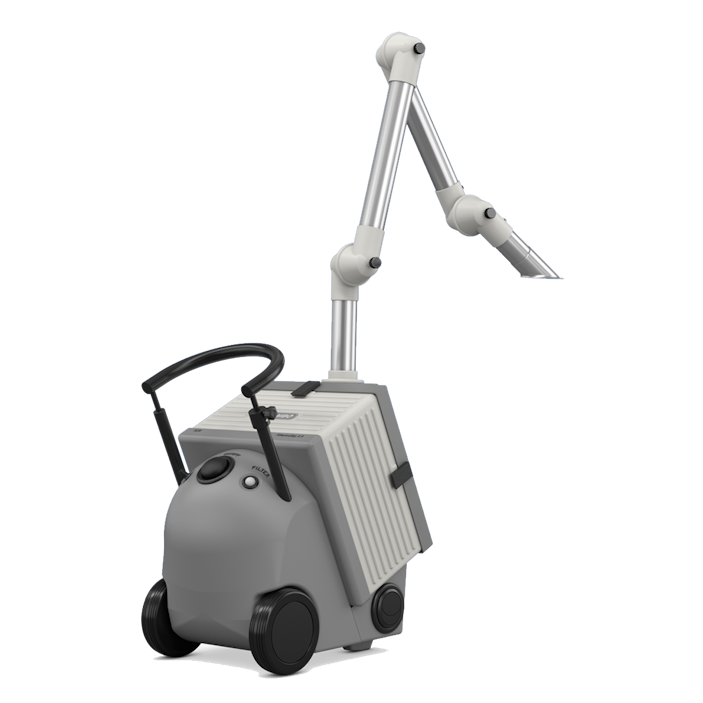

Mobile unit with telescopic handle and extraction arm

Product details

Applications

  • Bonding, laminating, varnishing

  • Pre-treat, cleaning

  • Moulding, printing, and more

Features

  • Mobile and flexible extraction unit for various applications

  • High suction power, steplessly adjustable

  • Extremely quiet operation

  • Simple filter handling, access via suction plate

  • Impact resistant ABS, chemical resistant, corrosion resistant

  • Installation of extraction arms (Ø 50 and 75) and application-specific capturing elements

Technical specifications
Device versionJUMBO Filtertrolley 2.0 ACD
Max. air flow in m³/h190
Max. vacuum in Pa3200
Nominal capacity in m³/h@Pa80 @ 1900
Dimensions in mm (WxDxH)450x340x530
Weight in kg36
Noise level in dB49
Connection variants – diameter in mm1 X 50 / option: 1 X 75

System benefits

  1. Low-noise operation

    ULT's extraction and filtration systems are particularly quiet. This has already been appreciated by numerous customers worldwide. Your employees are thus effectively protected against noise pollution.

  2. High flexibility

    Our extraction and filtration systems can be used flexibly. This lets you choose, for instance, between mobile and/or stationary solutions, integrated systems, or specialized ventilation solutions. If necessary, the optimal application can be configured by ULT experts on-site.

  3. Simple operation

    Our extraction and filtration systems have been designed in such a way that they can be put into operation trouble-free and are easy to operate. They are easy to operate, handle and maintain.

  4. Low energy consumption

    Our extraction systems reduce operating and maintenance costs due to their optimal filter concept. In addition, the system is designed in such a way that it keeps the required energy consumption extremely low.

  5. Ideal filtration technology

    The utilization of the most sensible filtration technology ensures a long filter service life and, consequently, reduces maintenance and spare parts costs. ULT always offers You the ideal solution for your specific pollutant technology in order to achieve the best possible filtration results.

  6. Individual extraction solution

    Your systems will be adapted to your needs. Starting with the pollutant situation and your internal processes to the best possible collection solution - we advise and support you in the selection and installation of your ideal extraction and filtration solution.

Find more on mobile fume extraction and JUMBO device versions!

Mobile fume extractor JUMBO Filtertrolley

Downloads

  1. Technical documentation JUMBO Filtertrolley
  2. Accessories JUMBO Filtertrolley
  3. Brochure "Mobile fume extractor JUMBO Filtertrolley"
Images
Ideal capture of vapors and odors for maximum filtration
Connection options for one or two extraction arms or hoses
Mobile extraction and filtration device JUMBO Filtertrolley white
Device-human size ratio
Mobile extraction unit for vapors, odors, gases
JUMBO Filtertrolley ACD
Mobile filter system JUMBO ACD
Utilization of sorption filters to eliminate odors and vapours
Easy to use and flexibly applicable
Control elements and filter indicators on the back of the device
Mobile filter unit for gases, odors, vapors
Simple filter handling, ergonomic transport, variable air outlet
Ideal capture of vapors and odors for maximum filtration
Connection options for one or two extraction arms or hoses
Mobile extraction and filtration device JUMBO Filtertrolley white
Device-human size ratio
Mobile extraction unit for vapors, odors, gases
JUMBO Filtertrolley ACD
Mobile filter system JUMBO ACD
Utilization of sorption filters to eliminate odors and vapours
