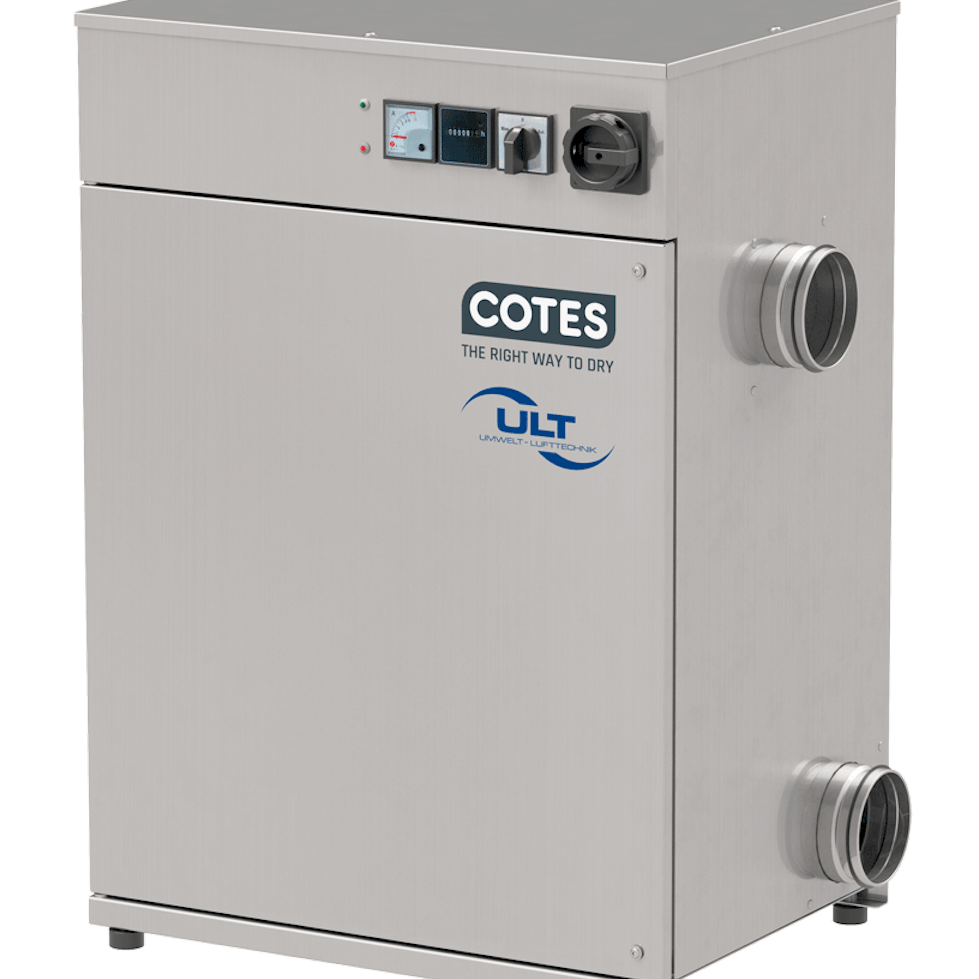

COTES C30 – module for process air drying

Product details

Applications

Product and room drying, air ventilation
Process air dehumidification or conditioning

Features

Rugged steel housing
System control elements on the front
Operating hours counter

Options

Volumetric flow control: sinple adjustment of the process and regeneration air volumes
Interface for ModBus
Filter monitoring
Particle filter occupancy: optical signalling
Digital system control

Technical specification

Device version	COTES C30
Process volume flow inlet (m³/h)	300
Power supply	230 V / 1~ / 50 Hz
Noise level with connected pipelines	<54 dB(A)
Freely available compression of the process air (Pa)	200
Regeneration air volume flow (m³/h)	50 ... 85
Freely available external compression at the outlet (Pa)	140 ... 180
Weight	53
Process air inlet	200x200
Process air outlet	200x200
Regeneration air inlet	100
Regeneration air outlet	100

Your benefits

Needs-based service and maintenance
We offer you quick and uncomplicated service and maintenance appointments for all COTES adsorption drying systems installed throughout Germany. The majority of the required spare and wear parts are in stock in our factory and are available to ensure an efficient maintenance and repair order. Our experienced service technicians are on the road for you throughout Europe.
Large variety of COTES systems
The large number of different sizes and system designs up to a process air volume flow of 30,000 m³/h make it possible to adequately supply many processes - including energy-intensive ones - with dry process air. Pre- and after-coolers, post-condensation modules, base and wall frames as well as individual control variants are available for all sizes.
High energy efficiency in air drying
The utilization of EC-controlled fans, heat recovery that is partly integrated as standard, and an ideal sorption volume ensure the most energy-efficient operation of the air drying systems and year-round ambient conditions. We always offer you the optimal solution for your special process requirements.
Flexible COTES system design
The safe and proven standard adsorption drying systems can be supplemented with additional modules (filters, control cabinets, transition pieces, etc.) if required, thereby significantly expanding their possible utilizations compared to the basic system. Please contact us.
Short delivery times and reliability
The high degree of automation and precise and constant tracking of incoming orders, together with efficient parts handling, enable very short delivery times. In addition, we can guarantee absolutely punctual delivery dates in consultation with our partners.
Safe and well-proven COTES system technology
The ULT-COTES adsorption drying technology is based on the "all-round adsorption drying systems" that have been carefully developed over many years. These can be planned, delivered, and installed in all configurations available as standard. Our extensive experience and many satisfied customers also enable you to use this long-lasting and robust system technology.
